V15 - V Groove MDF Panels 150mm

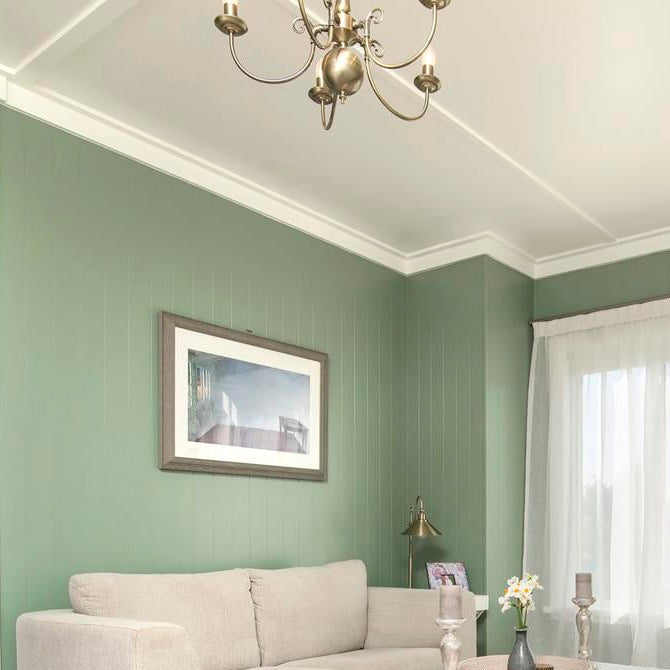

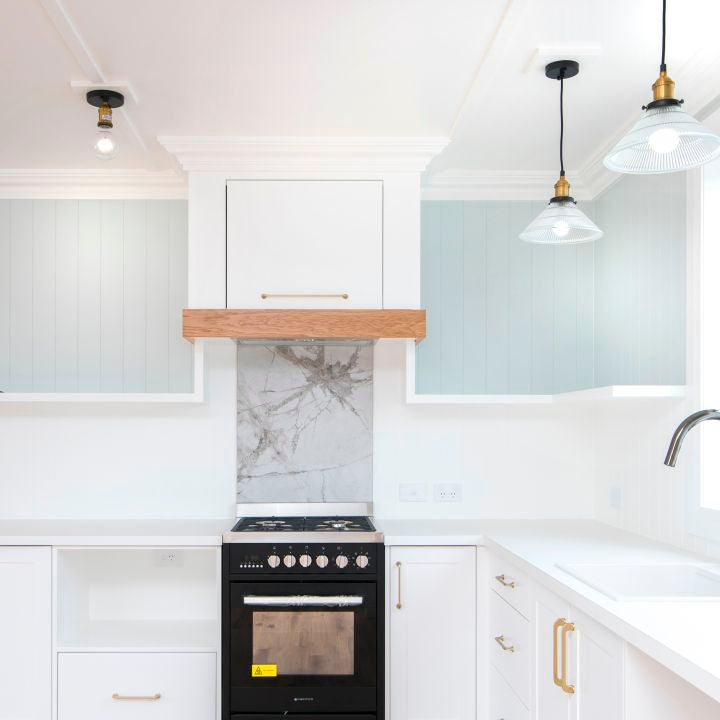

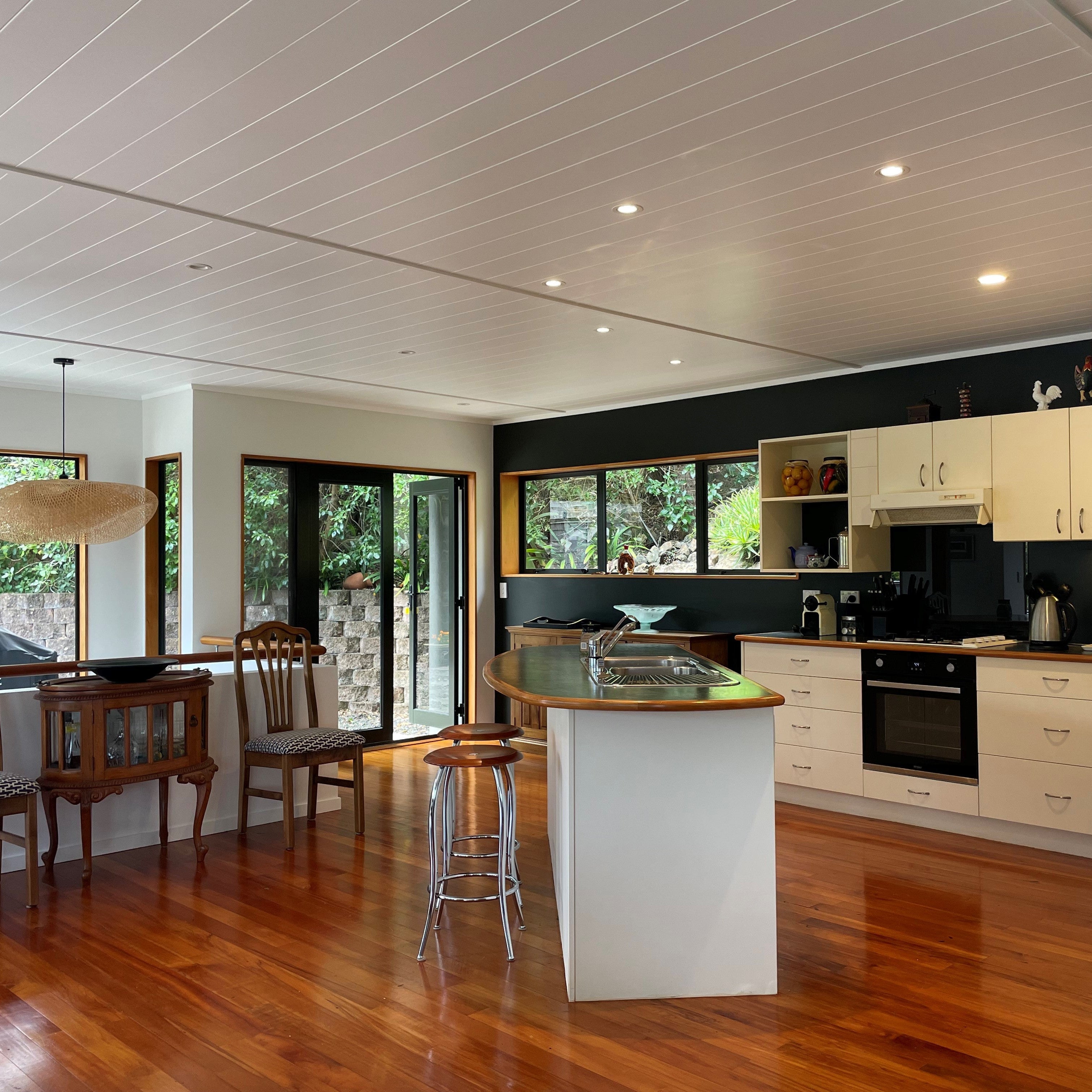

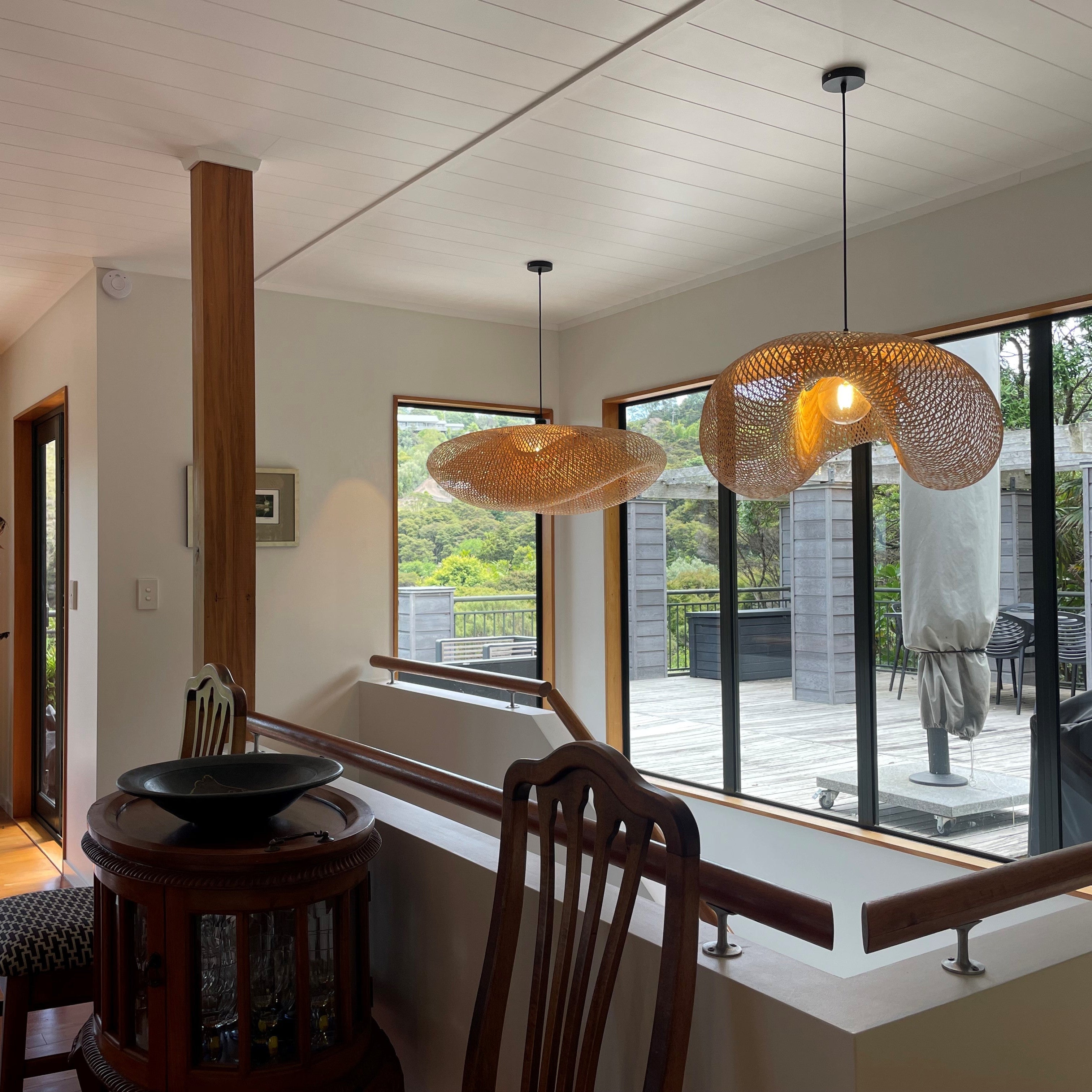

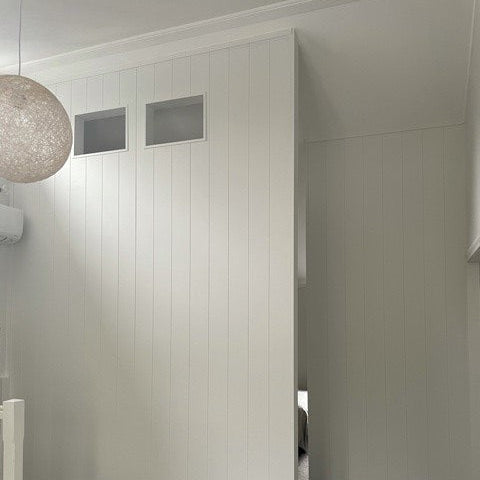

For a truly modern finish, Plankwall's V Groove 150mm MDF Panels are a wider spaced V Groove than most options currently available in the NZ market. The wider groove gives a fresh look and greater sense of proportion to rooms when used as an interior ceiling or wall feature. They help to create stand out appeal with the added assurance of high impact-resistance for busy spaces and wall bracing system capacity when required (see technical sheet for details).

Plankwall uses proprietary saw-based grooving machinery for a consistent, smooth surface finish to the grooves, ensuring ease of installation, reduced finishing time and a high-quality premium finish.

Product Details:

• Sustainably produced, Super E0 rated GoldenEdge MDF panels from Nelson Pine

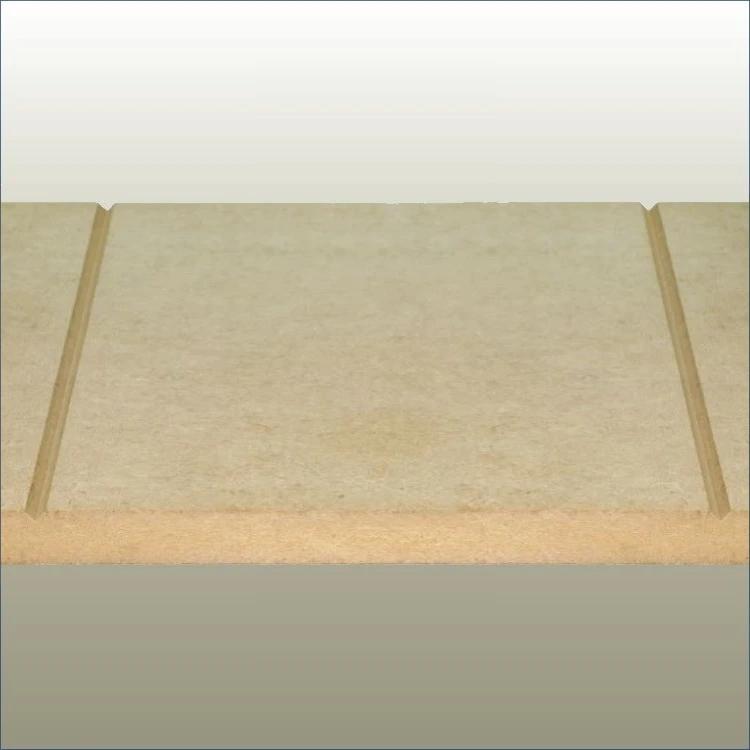

• V15 grooves: spaced at 150mm, 3mm deep
• Thickness: 9mm, 12mm, 16mm, 18mm
• Width: 1200mm
• Length: 2440mm, 2745mm, and 3660mm (16mm & 18mm: 2400mm only)
• Tongue & Groove edging on length of panels
• See Also: Plain Faced, V10, W Groove Panels

Suitable for interior walls and ceilings in dry areas.

Key Features:

Technical and Sustainability:

The panels are suitable for GoldenEdge® MDF Panelbrace™ Wall Bracing Systems and can be used as part of the bracing structure (under Branz appraisal 779) when installed as per NPIL specifications and Installation Guidelines - which now include the option of using gunned finish nails or staples to speed up installation and reduce the amount and size of filling required to finish.

Plankwall Grooved Panels Technical Statement

Plankwall Grooved Panels Design, Installation & Maintenance Guide

Visit BRANZ to view the appraisal report:

 GoldenEdge® MDF Panelbrace™ Wall Bracing Systems | BRANZ

E Zero
