V10 - V- Groove MDF Panels 100mm

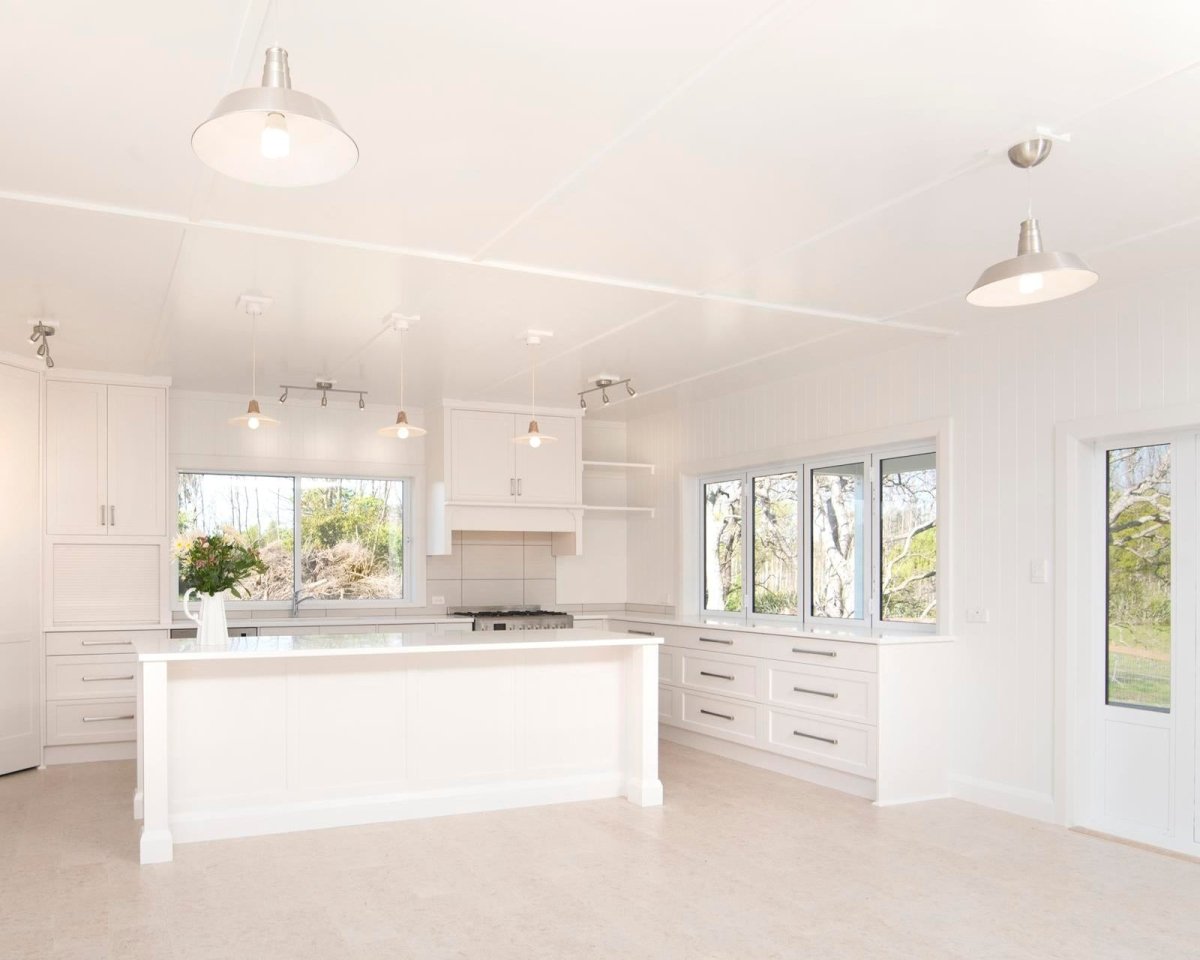

Whether you're building a modern masterpiece, or refurbishing an existing space, Plankwall's V Groove 100mm MDF Panels add texture and depth to interior walls and ceilings creating stand out appeal, with the added assurance of high impact-resistance for busy spaces and wall bracing system capacity when required (see technical sheet for details).

Plankwall uses proprietary saw-based grooving machinery for a consistent, smooth surface finish to the grooves, ensuring ease of installation, reduced finishing time and a high-quality premium finish.

Want to reduce preparation time on site? Our Almost Finished V100 pre-primed panels is now back in stock - offering the same classic 100mm V-Groove design with a smooth, factory-primed surface ready for final painting.

Our grooved MDF panels are available to order directly from Plankwall. Contact us to discuss your project, explore product options and request pricing.

Product Details:

  • Sustainably produced, Super E0 rated GoldenEdge MDF panels from Nelson Pine
  • V10 grooves: spaced at 100mm, 3mm deep
  • Thickness: 9mm, 12mm, 18mm
  • Width: 1200mm
  • Length: 2440mm, 2745mm, and 3660mm (18mm: 2400mm only)
  • Tongue & Groove edging on length of panels
  • See Also: Plain Faced, V15 , W Groove Panels

Suitable for interior walls and ceilings in dry areas.

Key Features:

  • New Zealand MDF panels finished locally in Auckland
  • Tongue and groove edging for seamless panel joins, easier installation and reduced fixing requirements
  • Proprietary saw-based grooving machinery for a consistent, smooth surface finish
  • Consistent density — easy to cut and shape
  • High impact resistance
  • High mechanical resistance
  • Equivalent weight to plasterboard, with no need for stopping
  • Good dimensional stability against temperature variations and dampness
  • Available in Raw MDF or 'Almost Finished' (pre-primed with 2 white UV coats on front face, and one UV clear coat on back for enhanced adhesiveness and panel protection)

Codes:

VG09/24MDF - VG09/27MDF - VG09/36MDF
VG12/24MDF - VG12/27MDF - VG12/36MDF

Technical and Sustainability:

The panels are suitable for GoldenEdge® MDF Panelbrace™ Wall Bracing Systems and can be used as part of the bracing structure (under Branz appraisal 779) when installed as per NPIL specifications and Installation Guidelines - which now include the option of using gunned finish nails or staples to speed up installation and reduce the amount and size of filling required to finish.

Plankwall Grooved Panels Technical Statement

Plankwall Grooved Panels Design, Installation and Maintenance Guide

Visit BRANZ to view the appraisal report:

 GoldenEdge® MDF Panelbrace™ Wall Bracing Systems | BRANZ E Zero
