Split Rail Wall Hanging System

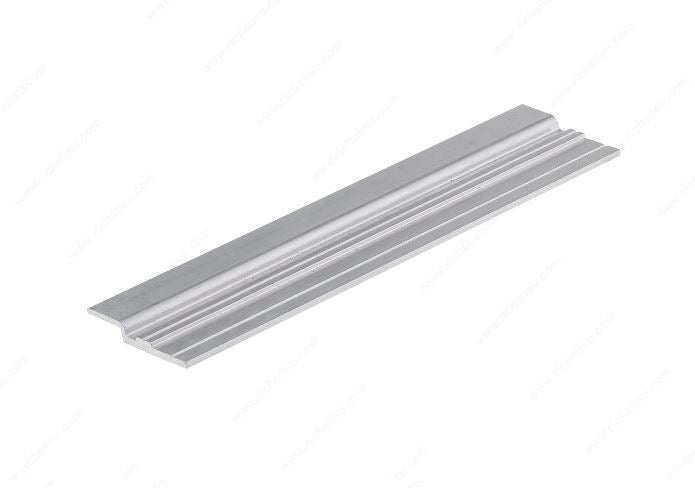

Plankwall® Split Rail is a heavy-duty, easy to use, concealed system for affixing panels and other large artworks to walls. The aluminium extrusions allow for simple panel installation. Strong and durable, no matter the environment.

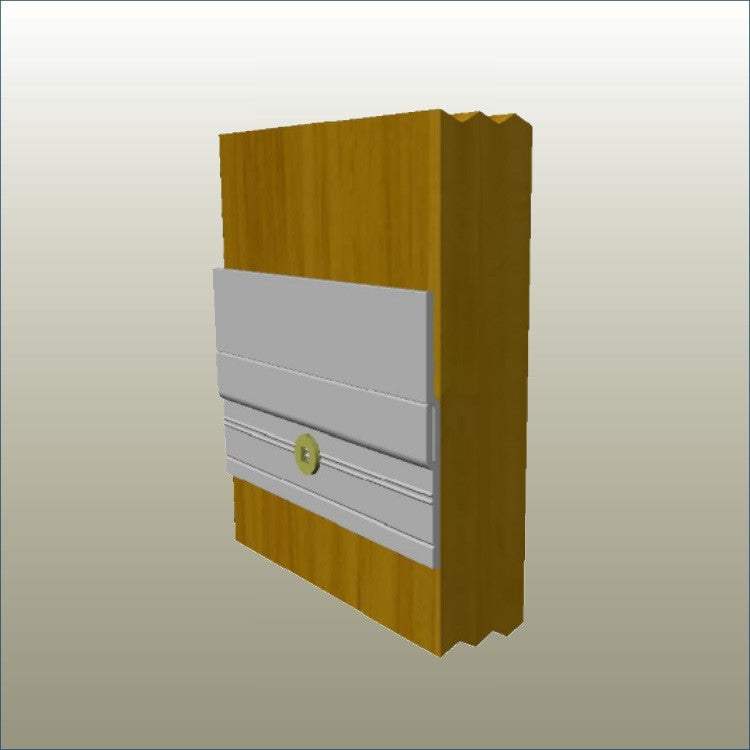

Choose from two lengths of Split Rail: Fix one to the wall and one on the panel and interlock, or match one Split Rail length with glass-strengthened acrylic Split Rail Clips.

Sold in 2.44M lengths.

Options:

  • Split Rail for flat, smooth walls and when a closer fit to walls is required.
  • Split Rail MT (More Tolerance) used for when greater tolerance to walls is needed (for older buildings or uneven walls).

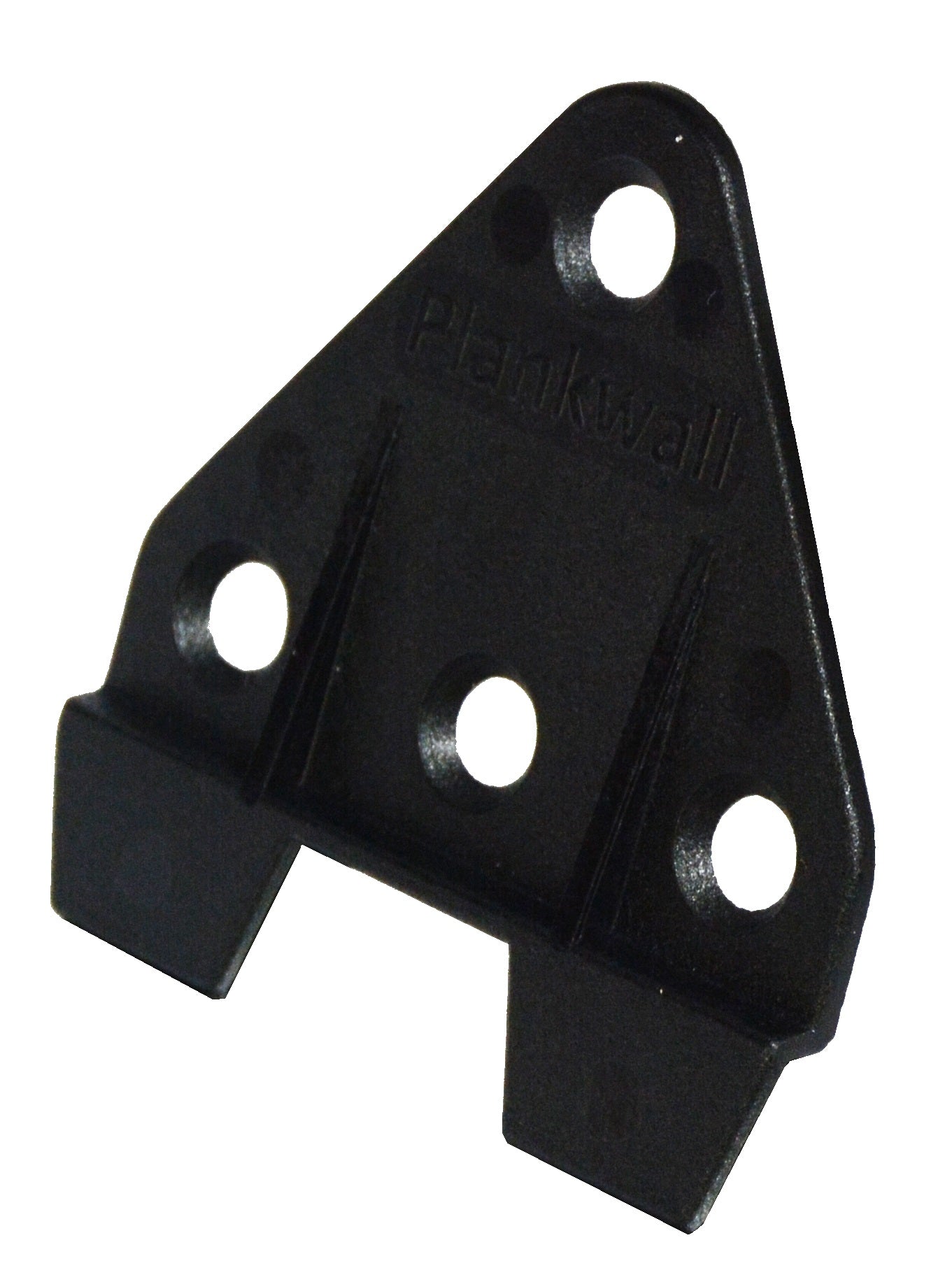

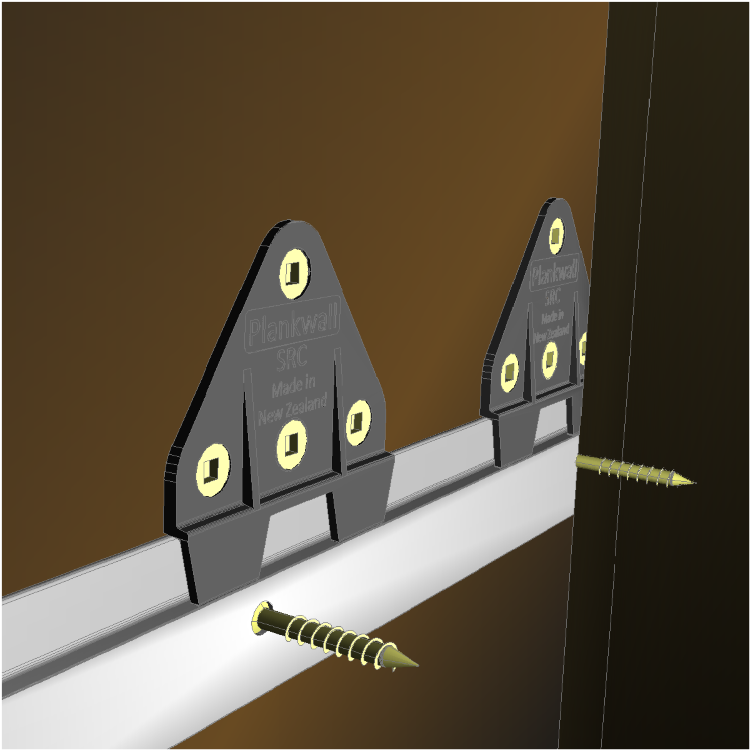

  • Use Split Rail Clips with Split Rail for attaching smaller panels and artworks.

Product Details:

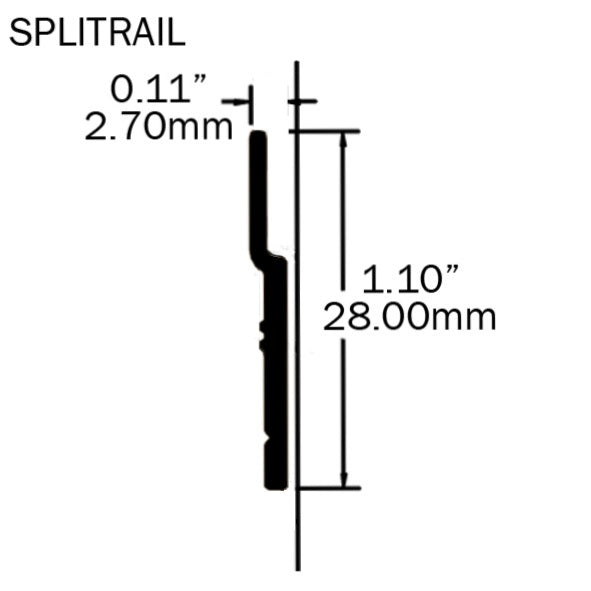

  • Dimensions: 2440mm Long and 28mm High
  • SRAIL clearance to wall: 2.70mm
  • SRAILMT Clearance to wall: 4.20mm
  • Sold in 2.44M lengths (can be cut to size for an additional price)

Codes: SRAIL
             SRAILMT (More Tolerance)
             SRC (Split Rail Clip)

Part of the Stickman® range of New Zealand designed & produced slimline aluminium extrusions used for joining and edge protection in panel joinery projects. Stickman profiles provide protection and detailing in cabinetry, kitchens, walls, retail and shop fitting designs. Distributed throughout New Zealand, Australia & North America.

For further information visit Stickman.co.nz
