Split Rail Panel Hanging System

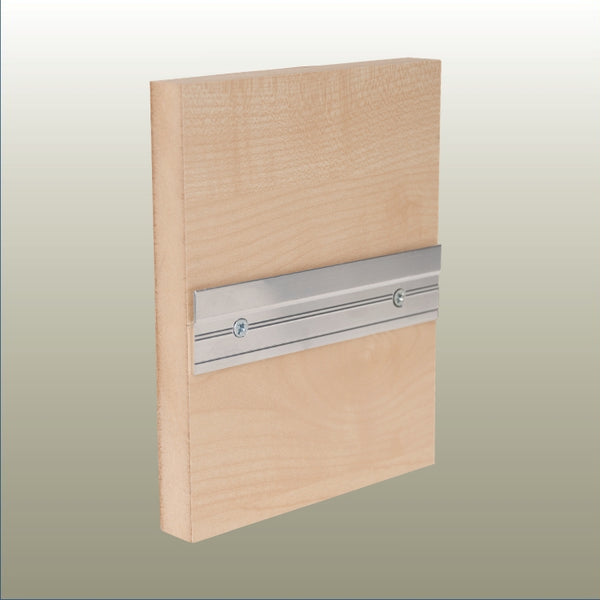

The Stickman® Split Rail Panel Hanging System is a concealed aluminium cleat system designed for securely mounting wall panels, cabinetry, mirrors and large artworks with a clean, professional finish, even working well on uneven walls.

The interlocking rail design provides strong hidden support and precise panel alignment, making it ideal for shopfitters, joiners and installers working with retail displays, architectural panels and custom joinery.

Product Details

System Components

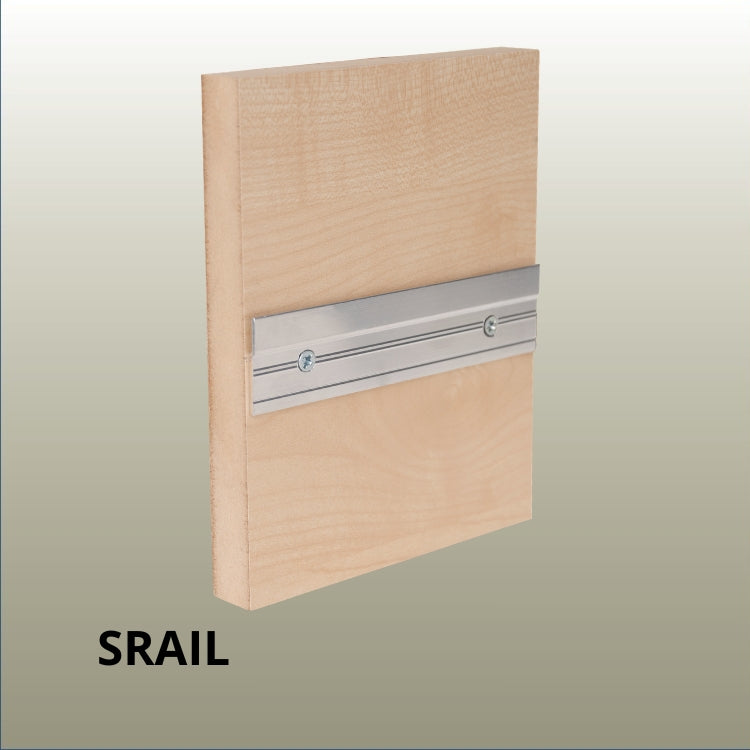

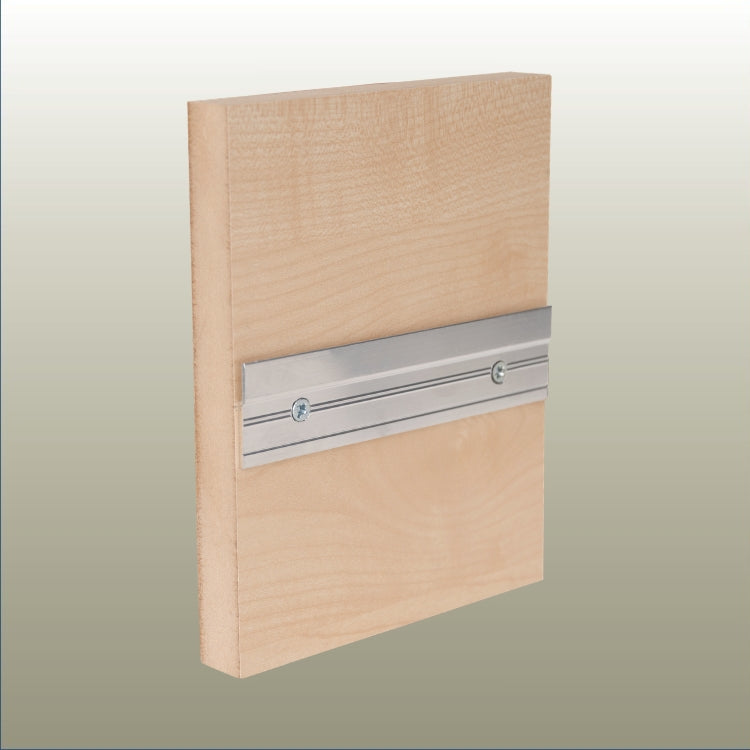

• Aluminium split rail (SRAIL)

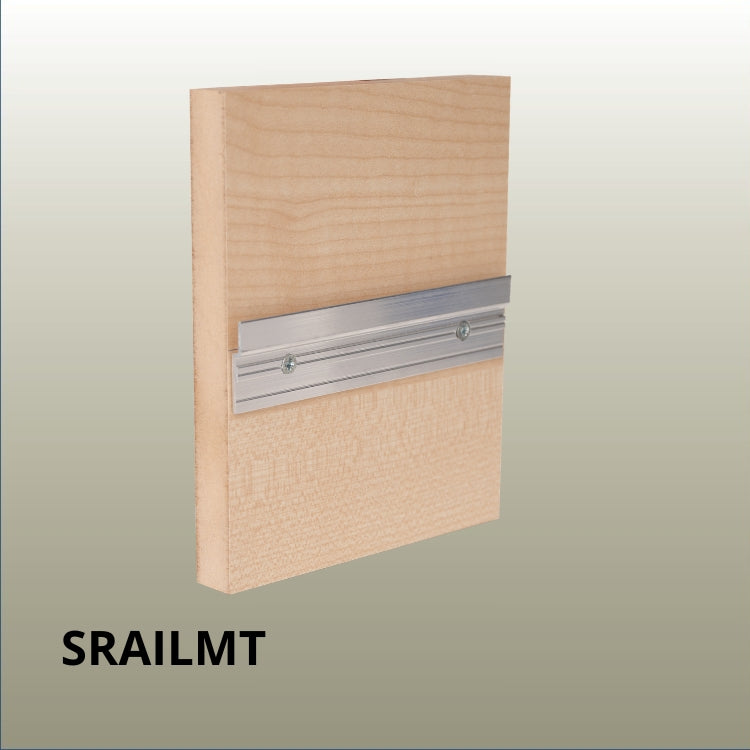

• Aluminium split rail mounting rail (SRAILMT)

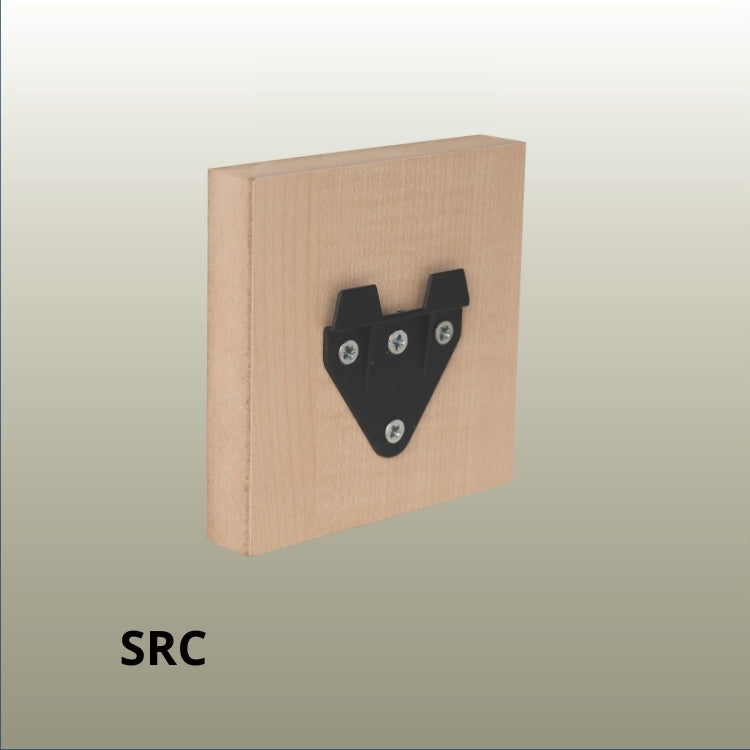

• Split rail clip

Dimensions

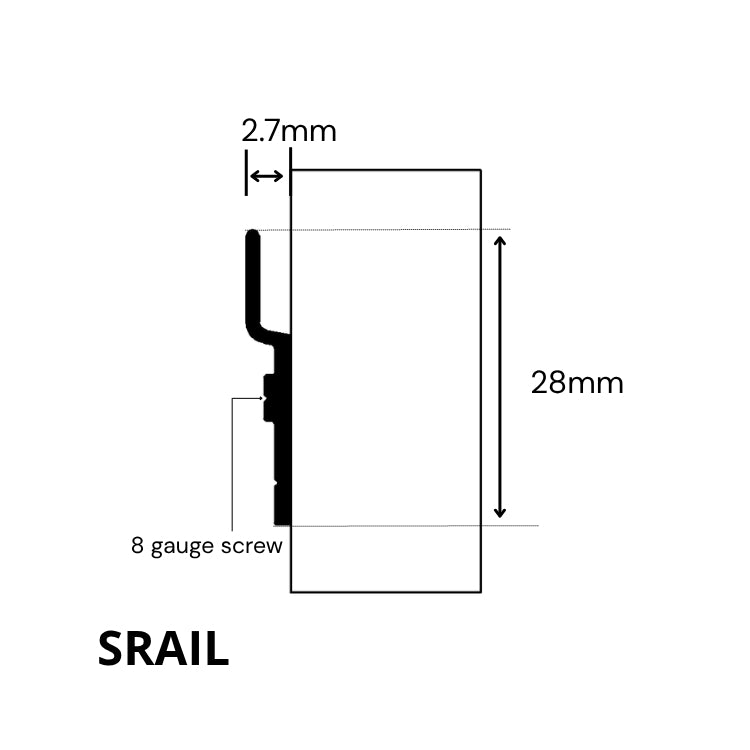

• Rail height: 28mm

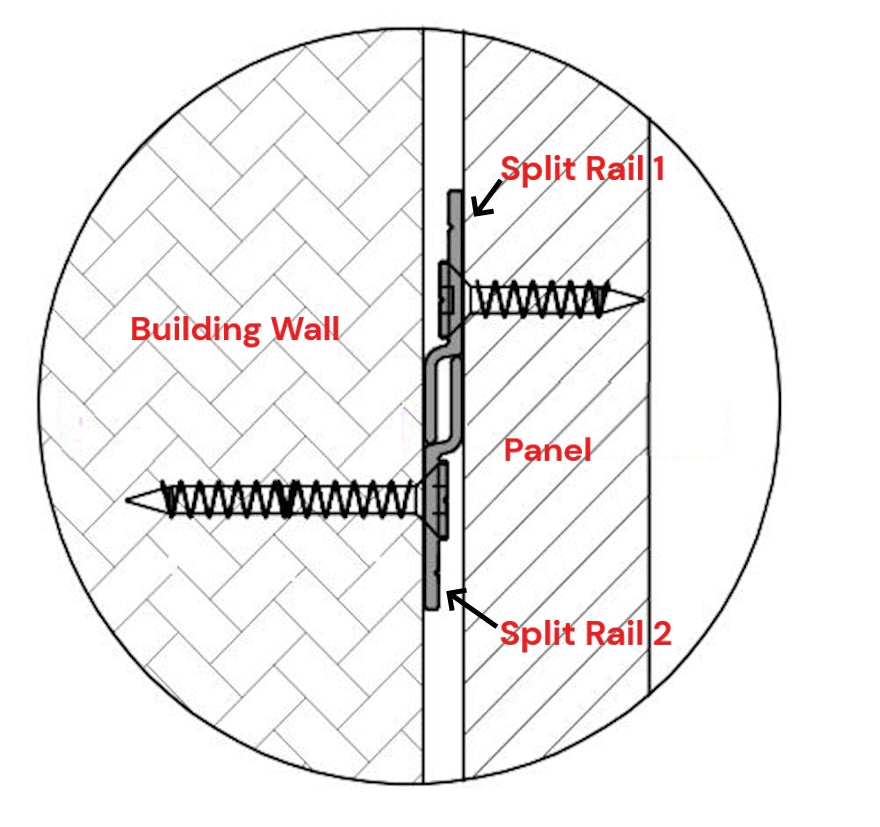

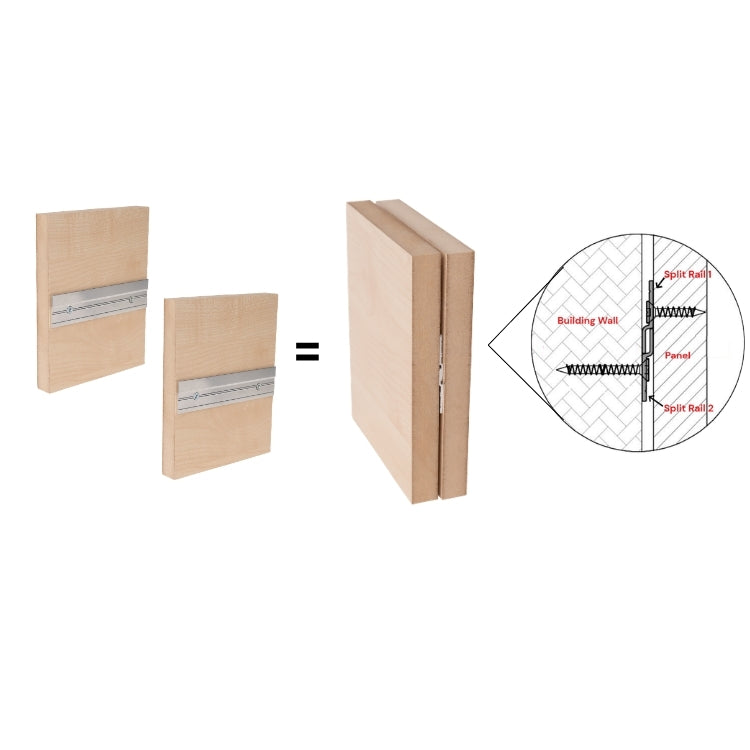

• Height when two rails interlock: 42mm
• SRAIL clearance to wall: 2.7mm

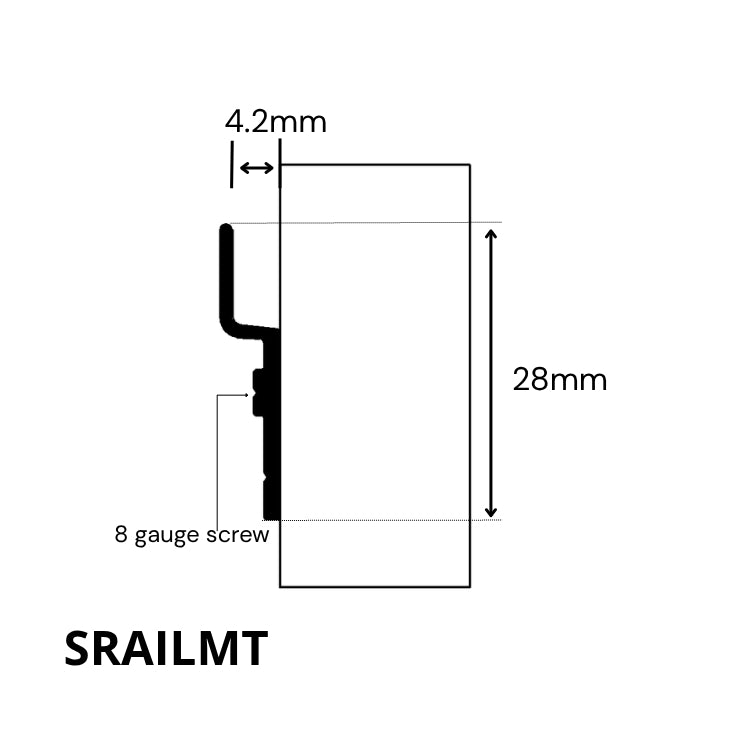

• SRAILMT clearance to wall: 4.2mm

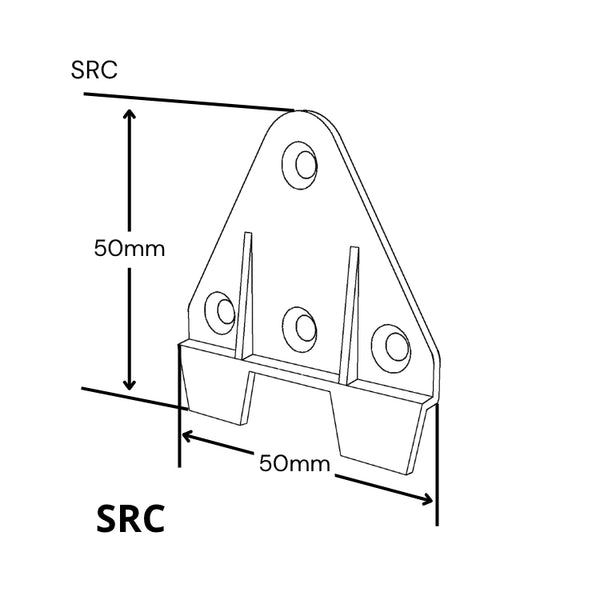

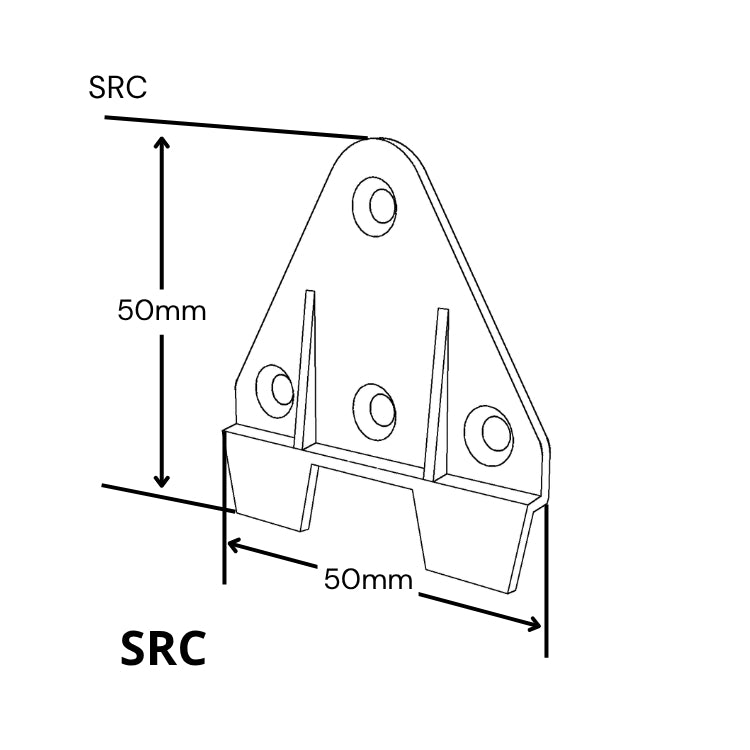

• Split Rail Clip: 50mm H × 50mm W

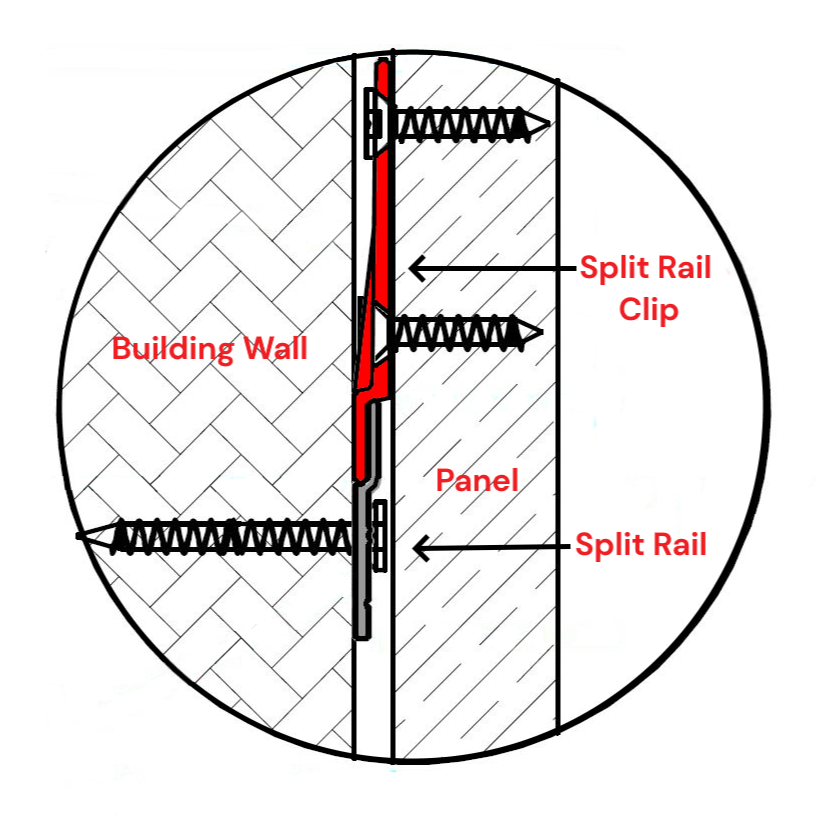

• Rail + clip locked height: 70mm

Length

• Supplied in 2.44m lengths
• Can be cut to size (additional cost)

Options:

• Use Split Rail for flat, smooth walls and when a closer fit to walls is required.
• Use Split Rail MT (More Tolerance) for when greater tolerance to walls is needed (for older buildings or uneven walls). For truly uneven walls, pad Split Rail MT with a washer and screw through both as required.

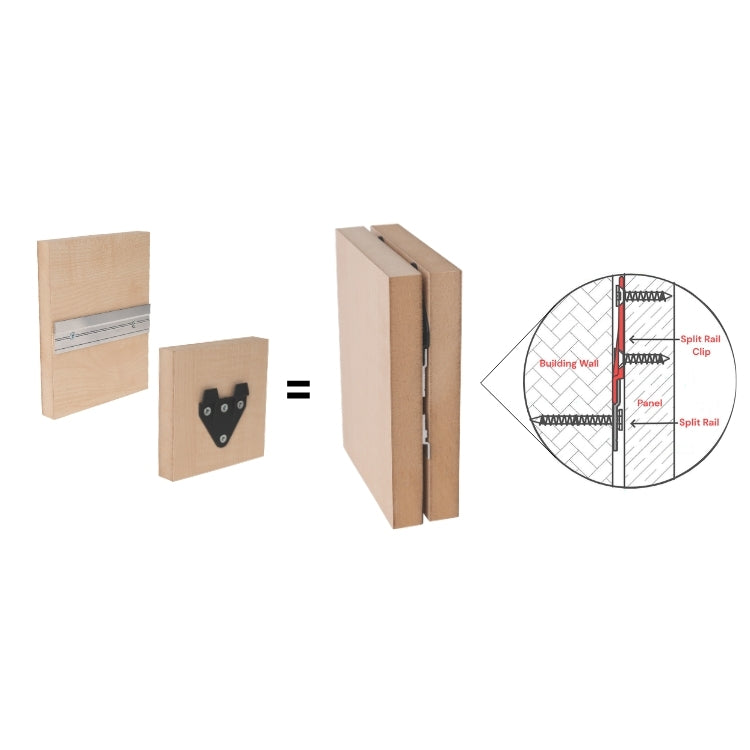

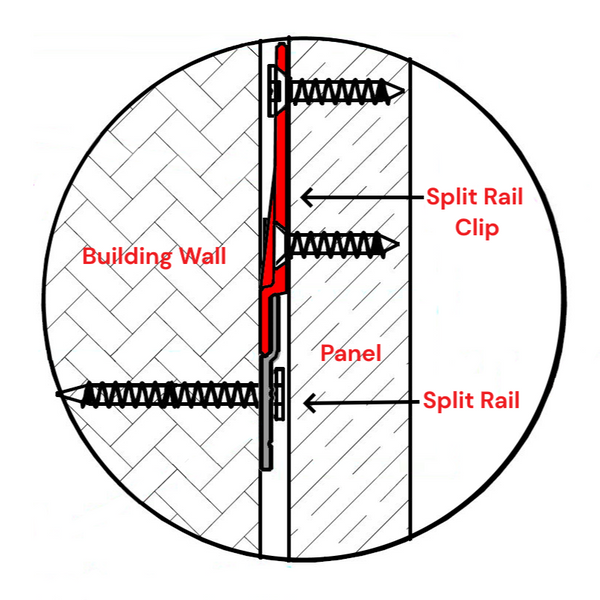

• Use Split Rail Clips with Split Rail for attaching smaller panels and artworks

Suitable for hanging:

Panels 12-25mm thick
Large Artworks
Mirrors
Cabinets
Other wall fixtures and displays

Codes:

• SRAIL
• SRAILMT (More Tolerance)

• SRC (Split Rail Clip)


For further information on Split Rail Wall Mount System, including number required per panel and installation guidelines download the Stickman Split Rail information sheet:

Stickman Split Rail Information Sheet

Split Rail is part of the Stickman^® range of New Zealand designed & produced slimline aluminium extrusions used for joining and edge protection in panel joinery projects. Stickman profiles provide protection and detailing in cabinetry, kitchens, walls, retail and shop fitting designs. Distributed throughout New Zealand, Australia & North America.

For further information visit Stickman.co.nz
