C09: Corner Join Profile – 9mm Building Panels

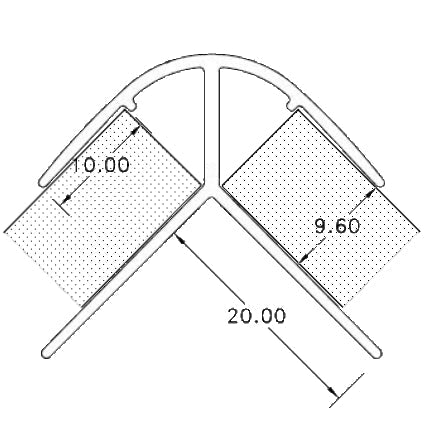

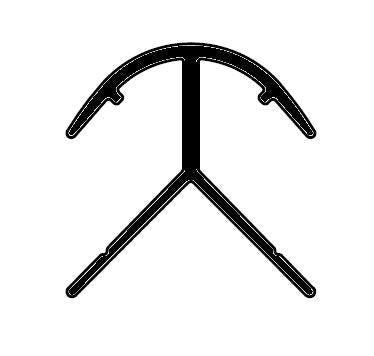

Plankwall® aluminium corner join profile designed for 90° external joins on 9mm MDF panels and other wood composite boards without mitring panel edges. Ideal for display panels, cabinetry and shopfitting projects where mitred panel edges are not possible or practical.

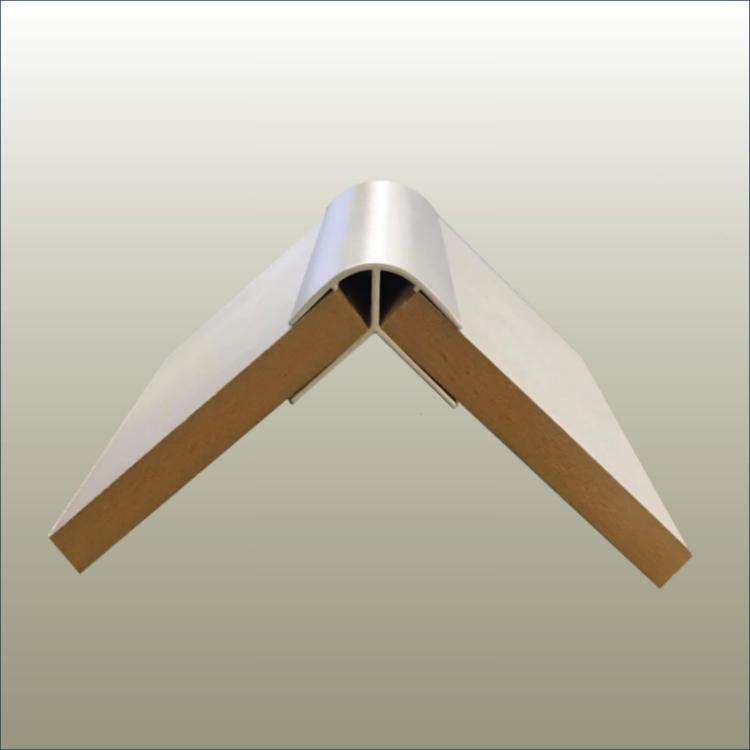

This aluminium extrusion provides a clean, durable external corner finish for assembling retail display panels and modular display units.

Product details

• Material: Aluminium extrusion
• Finish: Mill Finish
• Panel Compatibility: 9mm MDF panels and wood composite boards
• Corner Type: 90° external panel joins
• Key Feature: Allows panel joins without mitring edges
• Sizes: 5m or cut to Length
• Product Code: C09MF
• Use with: 9mm panel including Plankwall Grooved Panels

Stickman® is a New Zealand-designed range of slimline aluminium extrusions for panel joining and edge protection in cabinetry, wall panels & retail shopfitting projects, distributed across New Zealand, Australia and North America. Part of Plankwall’s Shopfitting & Joinery Accessories range.
