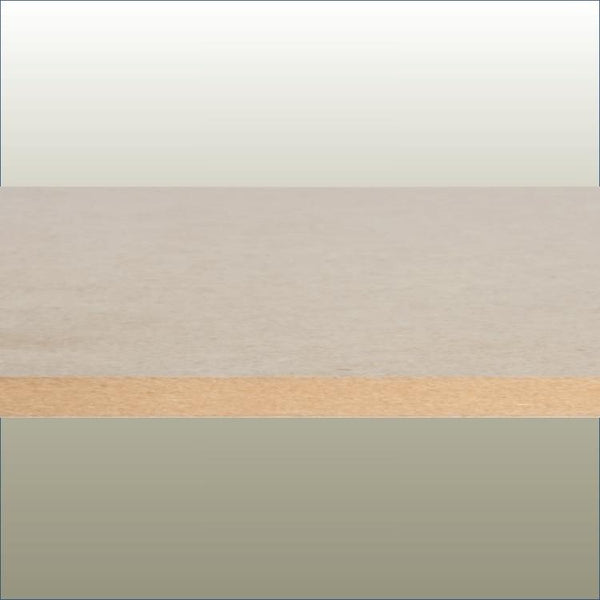

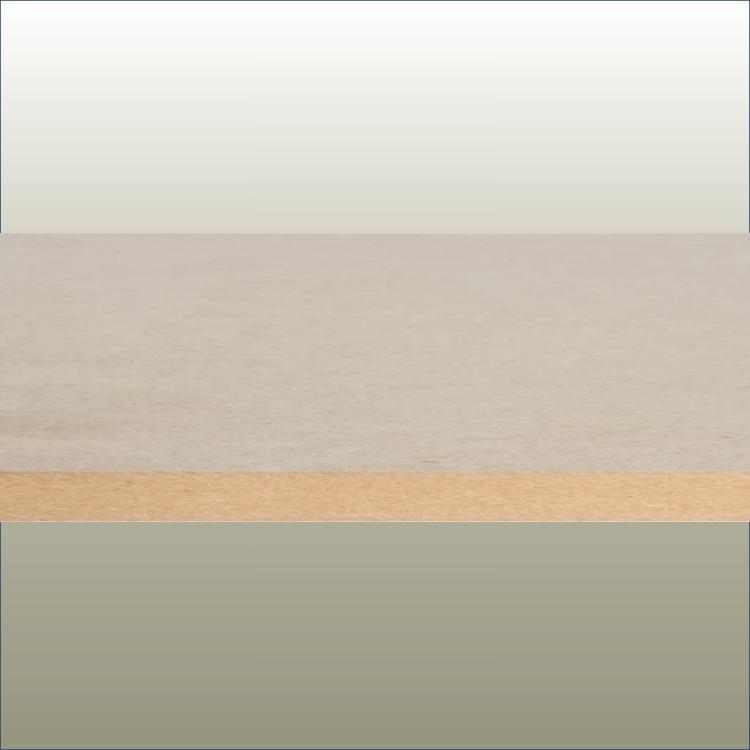

PF - Plain Faced MDF Building Panels

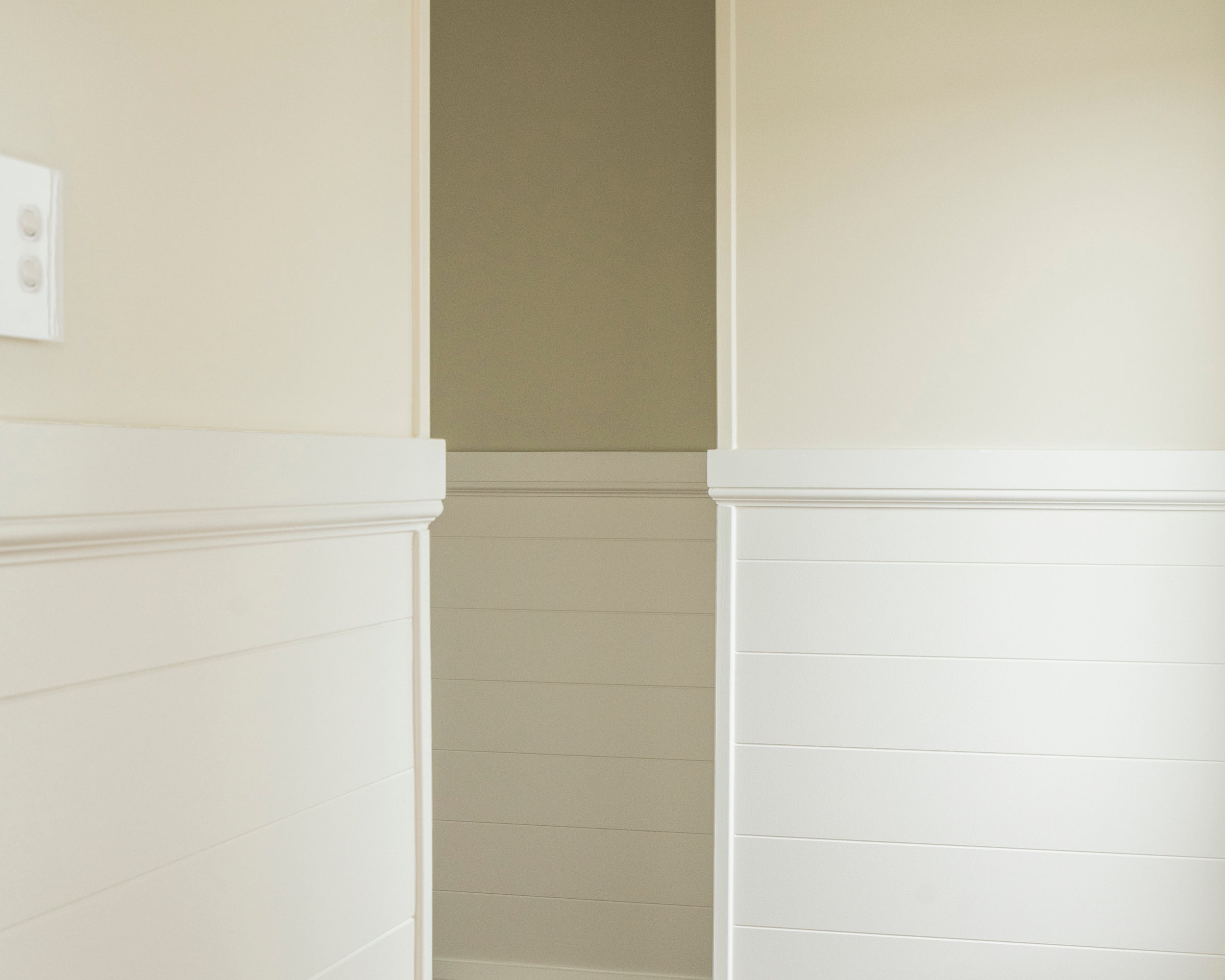

Plankwall's Plain Faced MDF Building Panels are useful for creating a seamless building panel system when used in conjunction with either V or W groove panels (e.g. for Dado effects) for internal walls or ceiling linings due to the consistency of the base panel product and tongue and grooved edging, with the added assurance of high impact-resistance for busy spaces and wall bracing system capacity when required (see technical sheet for details).

Product Details:

• Sustainably produced, Super E0 rated GoldenEdge MDF panels from Nelson Pine
• Thickness: 9mm, 12mm, 16mm, 18mm
• Width: 1200mm
• Length: 2440mm, 2745mm, 3660mm
• Interlocking 'tongue and groove' edging on the length side for seamless panel joins.

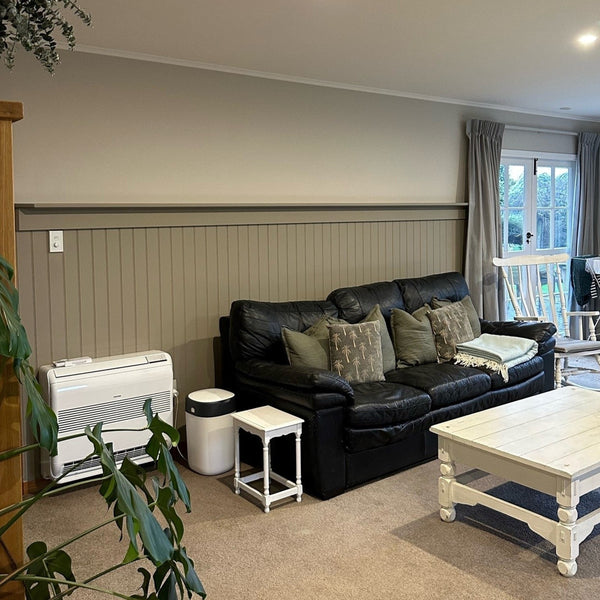

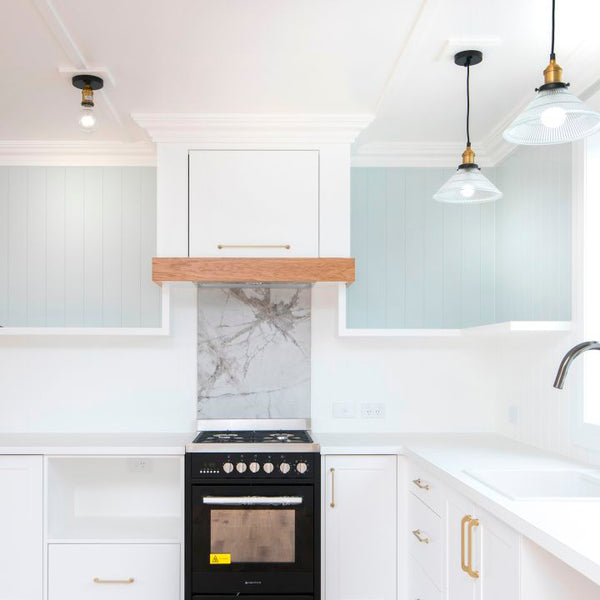

• See also: V10, V15 , W Groove Panels

Suitable for interior walls and ceilings in dry areas.

Key Features:

PFPAN092.4MDF - PFPAN092.7MDF - PFPAN093.6MDF

PFPAN122.4MDF - PFPAN122.7MDF - PFPAN123.6MDF

Technical and Sustainability:

The panels are suitable for GoldenEdge® MDF Panelbrace™ Wall Bracing Systems and can be used as part of the bracing structure (under Branz appraisal 779) when installed as per NPIL specifications and Installation Guidelines - which now include the option of using gunned finish nails or staples to speed up installation and reduce the amount and size of filling required to finish.

Plankwall Grooved Panels Technical Statement

Plankwall Grooved Panels Design, Installation & Maintenance Guide

Visit BRANZ to view the appraisal report:

 GoldenEdge® MDF Panelbrace™ Wall Bracing Systems | BRANZ

E Zero
